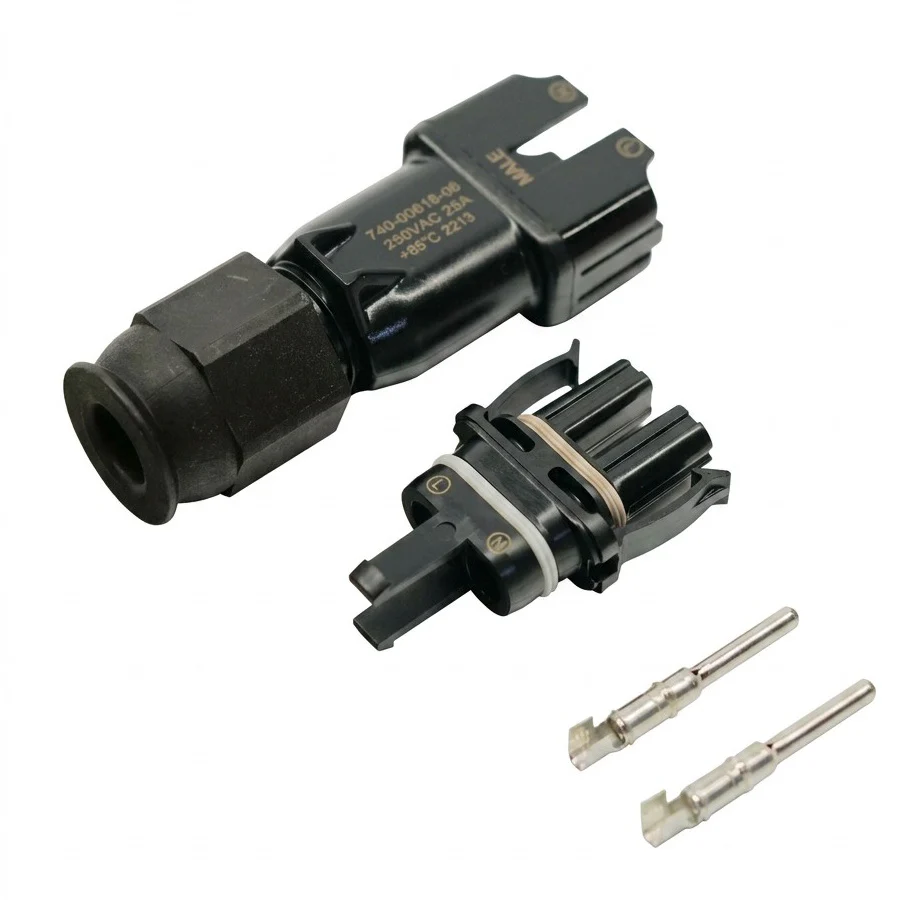

The Enphase Field Wireable Connector (Male) Single is a reliable and durable connector designed for field wiring applications in solar photovoltaic systems. It allows installers to create secure, weatherproof connections on-site, facilitating flexible and custom solar panel wiring configurations.
Key Features
- Field Wiring Capability: Enables secure, on-site wiring connections without pre-attached cables.
- Male Connector: Designed as the male counterpart for use with compatible Enphase components and connectors.
- Weatherproof Design: IP67 rated for excellent protection against dust and water ingress, suitable for harsh outdoor environments.
- Compatibility: Works seamlessly with Enphase Q Cable and other MC4-compatible solar system wiring components.
- Safe and Secure: Provides a robust locking mechanism to ensure stable electrical and mechanical connection.
- Installation Flexibility: Simplifies wiring layout customization and maintenance in solar PV installations.
Technical Specifications
| Specification | Value |
|---|---|
| Part Number | EN-Q-CONN-R-1M |
| Connector Type | Field-wireable Male Connector |
| Compatibility | MC4-compatible, Enphase Q Cable and microinverter systems |
| Ingress Protection | IP67 |
| Operating Temperature | -40°C to 85°C |
| Electrical Ratings | Standard PV connector voltage and current ratings (consult manufacturer datasheet for exact values) |
| Material | UV-resistant, weatherproof plastic and metal contacts |
This Enphase Field-Wireable Male Connector is essential for installers needing a flexible, reliable solution for custom wiring of solar PV systems, providing secure, weatherproof connections on-site.
