$9.37The Story
The Xpelair VX100-SP 100mm axial extractor fan is a compact, no-nonsense ventilation solution designed for quick installation in bathrooms, shower rooms, en-suites and toilets, including IP Zone 1 and Zone 2 wet areas. Featuring a short 32mm rear spigot, it slots neatly into shallow wall cavities and thin ceilings where standard-depth fans cannot go — making it the go-to retro-fit replacement fan for existing 100mm openings. The lubricated-for-life AC motor with thermal cut-out protection ensures long-term reliability with no maintenance. Available as a Standard switch fan (92935AW) or a Timer overrun fan (92931AW) with an adjustable 90-second to 30-minute run-on period.
Extraction rate
Air volume
Power consumption
Sound @ 3m
Splash-proof rating
Warranty
The 32mm rear spigot depth makes this fan ideal for installations where the wall or ceiling void is too shallow for full-depth fans. It slides into a standard 100mm core-drilled hole without any adaptor.
The single-speed AC motor with integrated thermal cut-out is factory-lubricated and sealed for the product lifetime — eliminating periodic maintenance. If the motor overheats, it automatically shuts down to prevent damage.
The Standard (92935AW) runs only while the light switch is on — suitable where occupancy periods are short. The Timer (92931AW) continues to run for an adjustable 90s to 30 minutes after the switch turns off, purging residual moisture and meeting Building Regulations Part F overrun requirements.
The snap-off grille cover removes without tools for quick and thorough cleaning — reducing air resistance from dust accumulation and maintaining extraction performance over the product lifetime.
Both variants deliver 21 l/s (76 m³/h) at free air, which meets the Approved Document Part F minimum intermittent extract rate for bathrooms (15 l/s) and utility rooms. The Specific Fan Power of 0.57 W/l/s keeps energy consumption within acceptable limits.

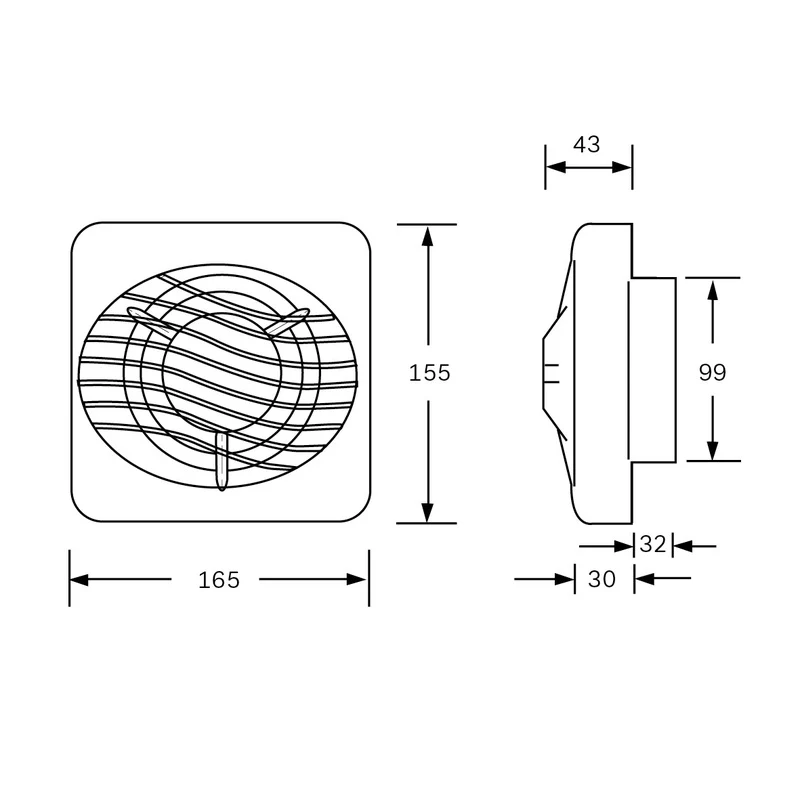

Compact overall dimensions of 165 × 155 × 43mm mean the VX100-SP fits standard UK bathroom fan apertures with minimal remedial work. The white ABS fascia blends cleanly with modern bathroom tiling and décor.
Technical Specifications
| Parameter | VX100-SP Standard (92935AW) | VX100T-SP Timer (92931AW) |
|---|---|---|
| Duct Diameter | 100mm (4") | 100mm (4") |
| Airflow (free air) | 21 l/s / 76 m³/h | 21 l/s / 76 m³/h |
| Electrical Power | 12 W | 12 W |
| Specific Fan Power (SFP) | 0.57 W/l/s | 0.57 W/l/s |
| Sound Level @ 3m | 41 dB(A) | 41 dB(A) |
| IP Rating | IPX4 | IPX4 |
| Motor Type | AC, single speed | AC, single speed |
| Timer Overrun | Not fitted | 90s – 30 min (adjustable) |
| Supply Voltage | 230V AC, 50Hz | 230V AC, 50Hz |
| Wiring Cores Required | 2-core (L + N) | 3-core (L + N + T) |
| Max Fuse Rating | 5A | 5A |
| Spigot Depth | 32mm (short spigot) | 32mm (short spigot) |
| Overall Dimensions (H×W×D) | 165 × 155 × 43mm | 165 × 155 × 43mm |
| Colour / Finish | White / Gloss ABS | White / Gloss ABS |
| Mounting | Wall or ceiling | Wall or ceiling |
| Compliance | Building Regs Part F | Building Regs Part F |
| Warranty | 2 years (Xpelair UK) | 2 years (Xpelair UK) |
| MPN | 92935AW | 92931AW |
Frequently Asked Questions
What is the difference between the Standard and Timer versions?
The VX100-SP Standard (92935AW) operates only while its connected switch is live — typically wired to the room lighting circuit. When the light turns off, the fan stops immediately. The VX100T-SP Timer (92931AW) continues to run after the switch opens, for an adjustable overrun period of 90 seconds to 30 minutes. This overrun purges residual moisture and is a requirement under Building Regulations Part F for some bathroom configurations. The timer fan requires an additional 3rd wire (Timer terminal) in the wiring.
Can this fan be installed in a shower zone (Zone 1)?
Yes. Both the 92935AW and 92931AW are rated IPX4, which means they can tolerate water splashing from any direction. This makes them suitable for installation within Zone 1 and Zone 2 of a bathroom as defined by BS 7671 (IET Wiring Regulations). For Zone 1 installations, a 30mA RCD must protect the circuit.
Does the VX100-SP include an external grille or wall kit?
No. The VX100-SP is supplied as the fan unit only. For through-wall installations you will need a separate 100mm wall kit such as the Xpelair VK10 (89120AW), which includes a wall tube and external grille. The short-spigot design means the fan itself protrudes only 32mm through the wall aperture, leaving room for a wall tube in thicker constructions.
How do I adjust the overrun time on the 92931AW Timer model?
The overrun timer is adjusted using control T inside the fan housing. Remove the front cover by depressing the latch and pulling it off. Turn clockwise to increase the run-on period and anti-clockwise to reduce it. The range is 90 seconds to 30 minutes. The factory default is typically around 5 minutes. Always isolate the mains supply before opening the housing.
Will the VX100-SP meet Part F ventilation requirements for a bathroom?
Approved Document Part F requires a minimum 15 l/s intermittent extract rate for bathrooms with no opening windows. The VX100-SP delivers 21 l/s at free air, comfortably exceeding this. However, actual performance depends on duct length and resistance — for duct runs exceeding approximately 1.5 metres, a fan with higher static pressure capability (such as the Simply Silent Contour range) may be more appropriate.
