$28.58The Story
The Xpelair Simply Silent™ Shower Fan Complete (SSSFC, 93086AW) is a purpose-designed in-shower extractor fan kit that installs directly within the shower cubicle ceiling — extracting steam and moisture at the point of generation rather than from a remote wall position. Powered by Xpelair's Ghost™ Air Movement Technology, the fan runs at either 15 or 21 l/s with a remarkable 22 dB(A) low-speed noise level. The in-shower position delivers an 88% better installed extraction rate than comparable loft-mounted inline fans, because there is no performance loss through a long ceiling void duct run. Supplied as a complete ceiling kit including 3m flexible ducting, external grille, and fixings — everything needed for a clean, compliant installation. Complies with Building Regulations Part F.
Low-speed noise
High-speed extract
Better than inline
Power draw
IP rating
Warranty
A conventional wall-mounted bathroom extractor draws humid air across the full room before it reaches the fan. By positioning the SSSFC directly within the shower enclosure ceiling, steam is captured at source before it can migrate to cold surfaces and walls. This is why installed performance is 88% better than a remote inline fan drawing through the same duct length.
The DX100BTR fan unit at the heart of this kit uses Ghost technology — precision-engineered impeller geometry and ultra-low-vibration motor bearings that eliminate the two primary sources of fan noise: aerodynamic turbulence and mechanical resonance. At low speed, 22 dB(A) at 3m is near the threshold of human hearing in a running shower environment.
The integral timer is adjustable from 30 seconds to 30 minutes (factory set at approximately 15 minutes). The overrun period activates when the light switch turns off, continuing to extract residual moisture from the shower enclosure. This satisfies Approved Document Part F overrun requirements for intermittent extract systems in bathrooms.
Loft-mounted inline fans operate in temperatures ranging from below freezing in winter to over 50°C in summer. Both extremes accelerate motor bearing wear and reduce component life. The SSSFC fan unit sits in the conditioned airspace of the shower enclosure — a consistent, mild temperature year-round — giving a significantly longer service life than loft-mounted alternatives.

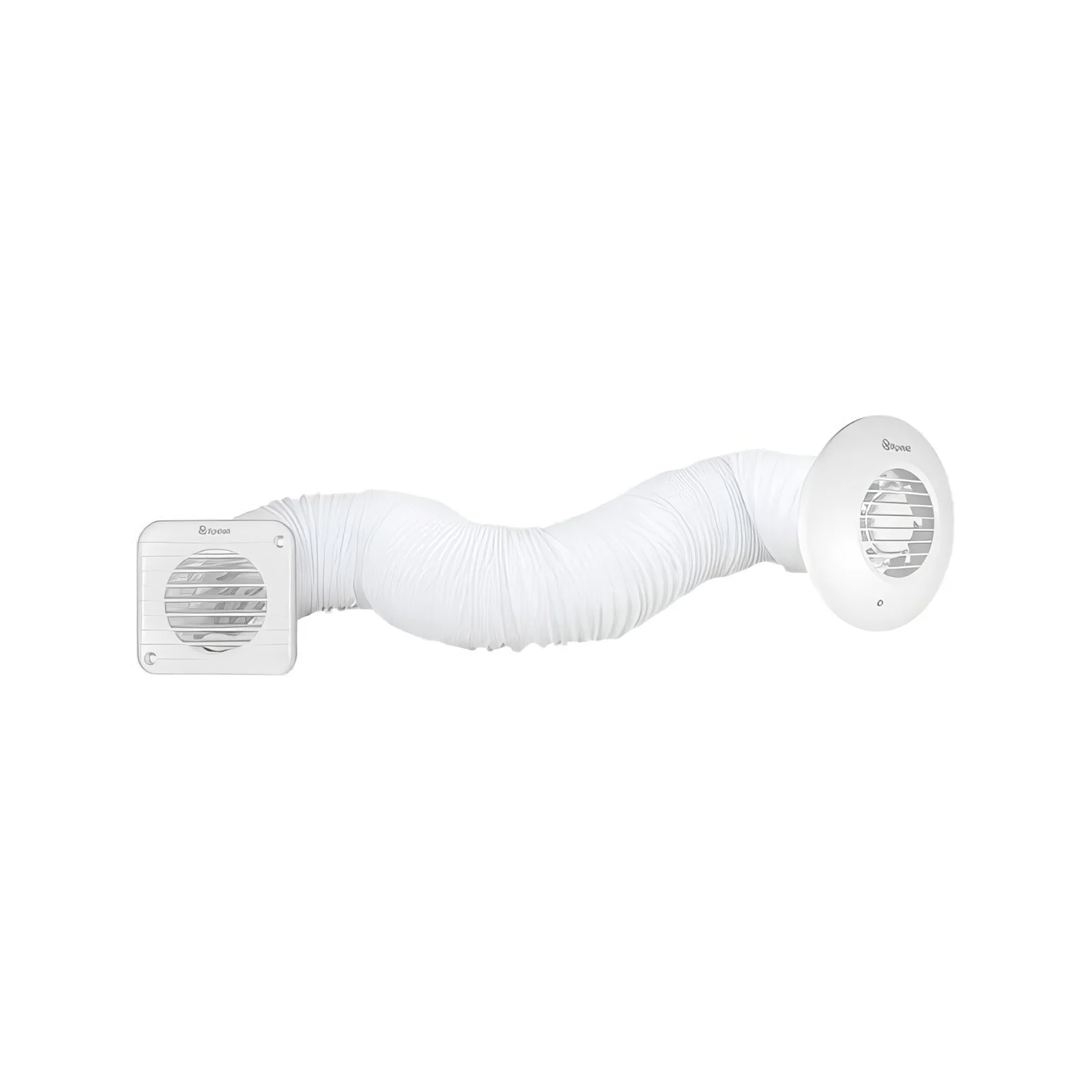

The 93086AW ships as a complete ceiling fitting kit: the fan unit, 3m flexible ducting, external grille, and screws and rawlplugs. The fan sits flush in the shower ceiling void, ducting connects to the external grille through the ceiling and loft space, requiring no additional components for a standard installation.
Manufactured in the UK under ISO 9001 quality management. The 21 l/s high-speed extract performance meets Approved Document Part F requirements for bathrooms and shower rooms. The EAN 5013562930864 confirms the 93086AW kit code. Xpelair's 2-year UK manufacturer guarantee covers all components.
Kit Contents
| Item | Details |
| Simply Silent DX100BTR Fan Unit | 2-speed, timer, round grille fascia, 230V mains |
| Flexible Ducting | 3m × 100mm PVC flexible hose |
| External Grille | White square external wall/roof outlet |
| Fixings | Screws and rawlplugs |
| Instructions | Installation and maintenance manual |
Technical Specifications
| Fan Performance | |
| MPN / Kit Code | 93086AW (SSSFC) |
| EAN | 5013562930864 |
| Fan Unit Inside Kit | Simply Silent DX100BTR |
| Speeds | 2 (selectable at installation) |
| Extract Rate — Low Speed | 15 l/s / 54 m³/h |
| Extract Rate — High Speed | 21 l/s / 76 m³/h |
| Sound Level — Low Speed @ 3m | 22 dB(A) |
| Sound Level — High Speed @ 3m | 34 dB(A) |
| Electrical Power | 6.0W (low) / 6.7W (high) |
| IP Rating | IPX4 (Zone 1 with 30mA RCD; Zone 2) |
| Motor Type | AC (mains voltage) |
| Supply Voltage | 230V AC, 50Hz |
| Max Fuse Rating | 5A |
| Timer | |
| Timer Range | 30 seconds – 30 minutes (adjustable) |
| Wiring Cores Required | 3-core (L, N, T) |
| Physical | |

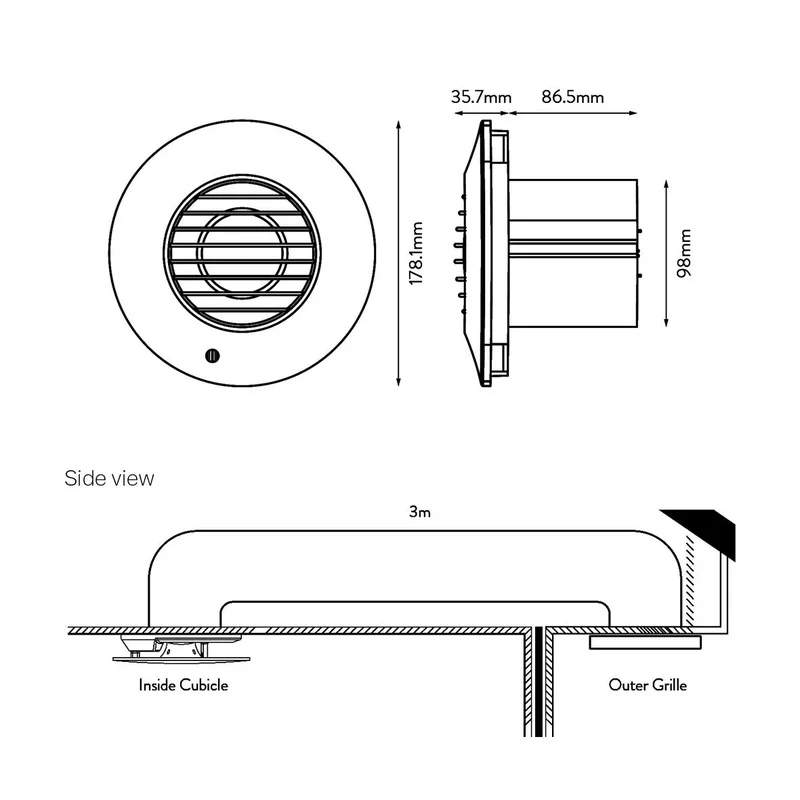

| Fan Unit Dimensions | 178 × 178 × 35mm |
| Duct Diameter | 100mm (4") |
| Fascia Style | Round grille, cool white |
| Mounting | Ceiling (in-shower) |
| Compliance | Building Regs Part F; ISO 9001 |
| Country of Manufacture | United Kingdom |
| Warranty | 2 years (Xpelair UK) |
Frequently Asked Questions
Why is an in-shower fan better than a wall-mounted bathroom fan?
A conventional wall or ceiling fan draws humid air across the room before extracting it. Steam from a shower can reach cold mirrors, walls and windows during this transit, causing condensation. The SSSFC installs directly within the shower ceiling, capturing steam at source before it can spread. Measured installed extraction is 88% better than a comparable inline fan drawing through the same duct run — because the air has no room to disperse before extraction begins.
Does this fan need an RCD? Can it be installed directly above a shower?
Yes to both. The 93086AW operates at 230V mains voltage and is rated IPX4, which allows Zone 1 installation (directly above the shower tray) provided the circuit is protected by a 30mA RCD as required by BS 7671. If your installation cannot include RCD protection, the Illumi (93087AW) uses a 12V SELV system with transformer, which does not require an RCD for Zone 1 installation.
How is the fan connected to the light switch?
The SSSFC is wired via a 3-core cable (L, N, T). The Live and Neutral connect to the permanent supply; the Timer terminal (T) connects to the switched live from the room light switch. When the light turns on, the fan starts. When the light turns off, the fan continues to run for the set overrun period, then stops automatically. A double-pole isolating switch should be incorporated in the fixed wiring.
Can the 3m ducting supplied reach from the shower ceiling to the external wall?
For most domestic bathrooms where the shower is on a ground or upper floor with a loft above, the 3m supplied is sufficient for the run from the fan to the external grille via the ceiling void. For larger properties or longer runs, the supplied ducting can be extended with a 100mm in-line duct connector and additional flexible or rigid duct. However, remember that each extra metre of duct reduces airflow — keep runs as short and straight as possible for maximum extraction performance.
What is the difference between the 93086AW and the 93087AW Illumi?
Both kits use Ghost technology and the same in-shower ceiling mounting approach. The 93087AW Illumi adds a built-in warm white LED light (207 lumens) powered via an included 12V SELV transformer — making it simultaneously a shower light and extractor fan. The SELV system also removes the RCD requirement for Zone 1, since the in-shower components operate at safe extra-low voltage. Choose the 93086AW for straightforward fan-only extraction; choose the 93087AW if you also want integrated shower lighting or prefer a SELV installation.
