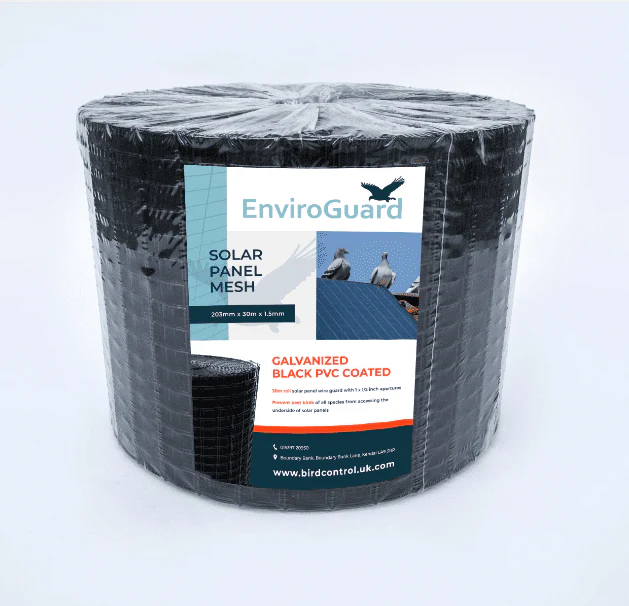

EnviroGuard Solar Panel Bird Deterrent Mesh — PVC Coated Galvanised 200mm × 30m Roll
HomeStore

EnviroGuard Solar Panel Bird Deterrent Mesh — PVC Coated Galvanised 200mm × 30m Roll

EnviroGuard Solar Panel Bird Deterrent Mesh — PVC Coated Galvanised 200mm × 30m Roll

$21.08

Original: $60.24

-65%
EnviroGuard Solar Panel Bird Deterrent Mesh — PVC Coated Galvanised 200mm × 30m Roll—

$60.24

$21.08

The Story

The EnviroGuard PVC Coated Solar Mesh is a 30-metre roll of electro-galvanised welded steel bird deterrent mesh, black PVC coated for UV resistance and a discreet rooftop appearance. At 200 mm wide with a 25 mm × 12.5 mm aperture, it is correctly sized to fit directly between the solar panel frame and roof surface on most standard residential panels — no cutting down from wider rolls required. Used with compatible solar panel mesh clips, it creates a durable physical barrier against pigeons and all nesting birds without drilling, gluing, or voiding panel warranties.

30 m
Roll length
200 mm
Roll width
25×12.5 mm
Aperture size
7 kg
Roll weight
ℹ Mesh only — clips sold separately — This listing is for the mesh roll only (BIRD-MESH-BLK). Compatible solar panel mesh clips are available separately. For a complete kit including mesh, clips, and stainless corner ties, see the EG-BIRD-MESH-BLK-KIT.
Technical Specifications
Brand EnviroGuard
Part Number BIRD-MESH-BLK
Roll Length 30 m
Roll Width 200 mm
Aperture Size 25 mm (h) × 12.5 mm (w)
Wire Diameter Approx. 1.42 mm (22 gauge) steel core; PVC coating to 1.25 mm outer
Material Electro-galvanised welded steel, UV-resistant black PVC coating
Colour Black
Roll Weight 7 kg
Fixing Method Compatible solar panel mesh clips (sold separately) — no drilling required
Suitable For Residential, commercial & industrial rooftop solar PV installations
Frequently Asked Questions
How many panels will one 30 m roll cover?
Coverage depends on panel size and array layout. The 200 mm width fits most standard residential panels directly without needing to cut the roll down. A single 1.7 m-tall panel requires approximately 1.7 m of mesh per side — so for a row of 4 panels in portrait, you need around 7 m per long side. A 30 m roll is well suited to arrays of 10–14 panels; for larger commercial arrays, multiple rolls can be ordered.
Will this void my solar panel warranty?
No — when installed using compatible mesh clips that grip the panel frame edge, no adhesive, screws, or penetration of the frame is required. This preserves the panel manufacturer warranty. Always use the correct clip type and avoid any adhesive directly onto the panel glass or frame unless specifically approved by the panel manufacturer.
Can the mesh be cut to length on site?
Yes — the mesh cuts cleanly with standard tin snips or heavy-duty wire cutters. Measure and pre-cut lengths on the ground before going onto the roof. Fold a 20–30 mm kick-out at the bottom edge of each section before fitting to help lock the mesh base securely under the clip system and prevent uplift in wind.
EnviroGuard Solar Panel Bird Deterrent Mesh — PVC Coated Galvanised 200mm × 30m Roll - Image 2

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

EnviroGuard Solar Panel Bird Deterrent Mesh — PVC Coated Galvanised 200mm × 30m Roll - Image 3

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Description

The EnviroGuard PVC Coated Solar Mesh is a 30-metre roll of electro-galvanised welded steel bird deterrent mesh, black PVC coated for UV resistance and a discreet rooftop appearance. At 200 mm wide with a 25 mm × 12.5 mm aperture, it is correctly sized to fit directly between the solar panel frame and roof surface on most standard residential panels — no cutting down from wider rolls required. Used with compatible solar panel mesh clips, it creates a durable physical barrier against pigeons and all nesting birds without drilling, gluing, or voiding panel warranties.

30 m
Roll length
200 mm
Roll width
25×12.5 mm
Aperture size
7 kg
Roll weight
ℹ Mesh only — clips sold separately — This listing is for the mesh roll only (BIRD-MESH-BLK). Compatible solar panel mesh clips are available separately. For a complete kit including mesh, clips, and stainless corner ties, see the EG-BIRD-MESH-BLK-KIT.
Technical Specifications
Brand EnviroGuard
Part Number BIRD-MESH-BLK
Roll Length 30 m
Roll Width 200 mm
Aperture Size 25 mm (h) × 12.5 mm (w)
Wire Diameter Approx. 1.42 mm (22 gauge) steel core; PVC coating to 1.25 mm outer
Material Electro-galvanised welded steel, UV-resistant black PVC coating
Colour Black
Roll Weight 7 kg
Fixing Method Compatible solar panel mesh clips (sold separately) — no drilling required
Suitable For Residential, commercial & industrial rooftop solar PV installations
Frequently Asked Questions
How many panels will one 30 m roll cover?
Coverage depends on panel size and array layout. The 200 mm width fits most standard residential panels directly without needing to cut the roll down. A single 1.7 m-tall panel requires approximately 1.7 m of mesh per side — so for a row of 4 panels in portrait, you need around 7 m per long side. A 30 m roll is well suited to arrays of 10–14 panels; for larger commercial arrays, multiple rolls can be ordered.
Will this void my solar panel warranty?
No — when installed using compatible mesh clips that grip the panel frame edge, no adhesive, screws, or penetration of the frame is required. This preserves the panel manufacturer warranty. Always use the correct clip type and avoid any adhesive directly onto the panel glass or frame unless specifically approved by the panel manufacturer.
Can the mesh be cut to length on site?
Yes — the mesh cuts cleanly with standard tin snips or heavy-duty wire cutters. Measure and pre-cut lengths on the ground before going onto the roof. Fold a 20–30 mm kick-out at the bottom edge of each section before fitting to help lock the mesh base securely under the clip system and prevent uplift in wind.
