ThermoSphere 200W/m² Electric Underfloor Heating Mat

Select Options

From $33.27

Original: $95.05

-65%

ThermoSphere 200W/m² Electric Underfloor Heating Mat—

$95.05

$33.27

Select Options

From $33.27

Original: $95.05

-65%

ThermoSphere 200W/m² Electric Underfloor Heating Mat—

$95.05

$33.27

The Story

The ThermoSphere Mesh 200W/m² is the highest-output variant in the Mesh range, designed for rooms with high heat loss — conservatories, extensions with large glazed areas, ground-floor rooms without underfloor insulation and poorly insulated properties. At 200W/m² it delivers the fastest heat-up time and highest output per m² in the range. Same self-adhesive TwistedTwin construction, IP68 protection and lifetime warranty. Made in Great Britain.

200W/m²

Output

3.5mm

Thickness

IP68

Wet Room Safe

TwistedTwin

Stress-Free

Made in

Great Britain

Lifetime

Warranty

Key Features

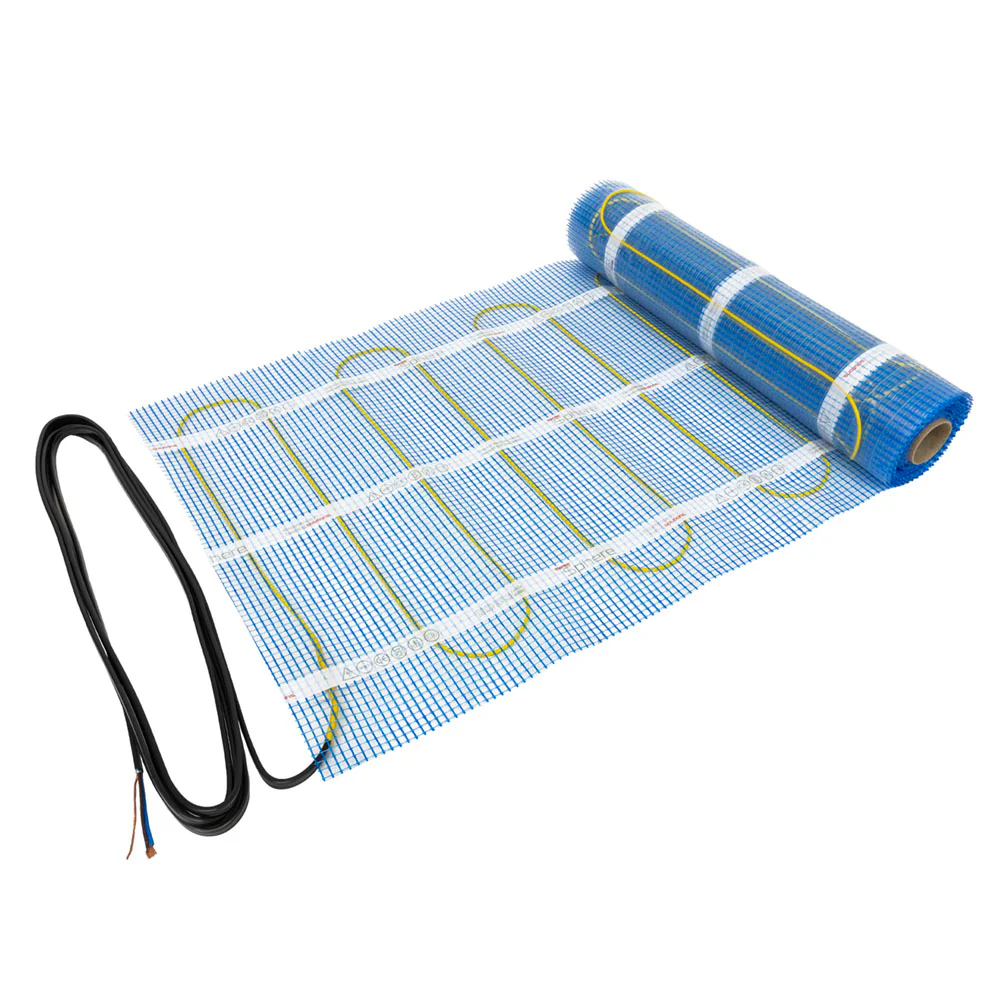

Self-Adhesive Mesh — Wire-Side-Down Installation

The fully self-adhesive fibreglass mesh sticks wire-side-down to the substrate. This protects the TwistedTwin cable during foot traffic and tiling, while holding the mat flat for self-levelling. No additional fixing tape needed.

Self-adhesiveWire-side-downProtects cable

200W/m² Output — High-Demand Rooms

At 200W/m², this mat is best suited as a primary heat source in high heat-loss rooms — conservatories, large extensions. Delivers the fastest heat-up time of the Mesh range.

200W/m²Pre-spaced cableEven output

TwistedTwin Heating Cable — Stress-Free, Fully Earthed

ThermoSphere's proprietary TwistedTwin cable uses a twisted-pair conductor construction that neutralises mechanical stress, preventing the fractures that develop in conventional cables under repeated thermal cycling. A continuous full earth braid runs the entire cable length — making these among the safest electric underfloor heating cables in the UK.

TwistedTwinFull earth braidStress-free

LayFlat Technology — 4mm Cold Tail

The LayFlat cold tail is only 4mm thick — far thinner than conventional cold tails — making it straightforward to conceal within the tile adhesive layer without any raised ridge in the finished floor.

4mm cold tailConcealed in adhesive

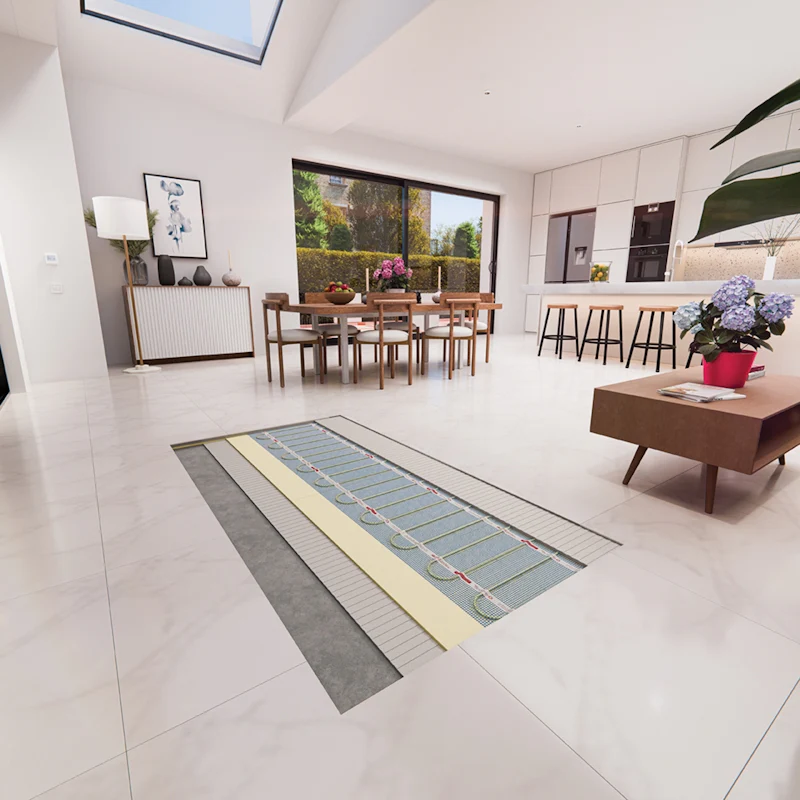

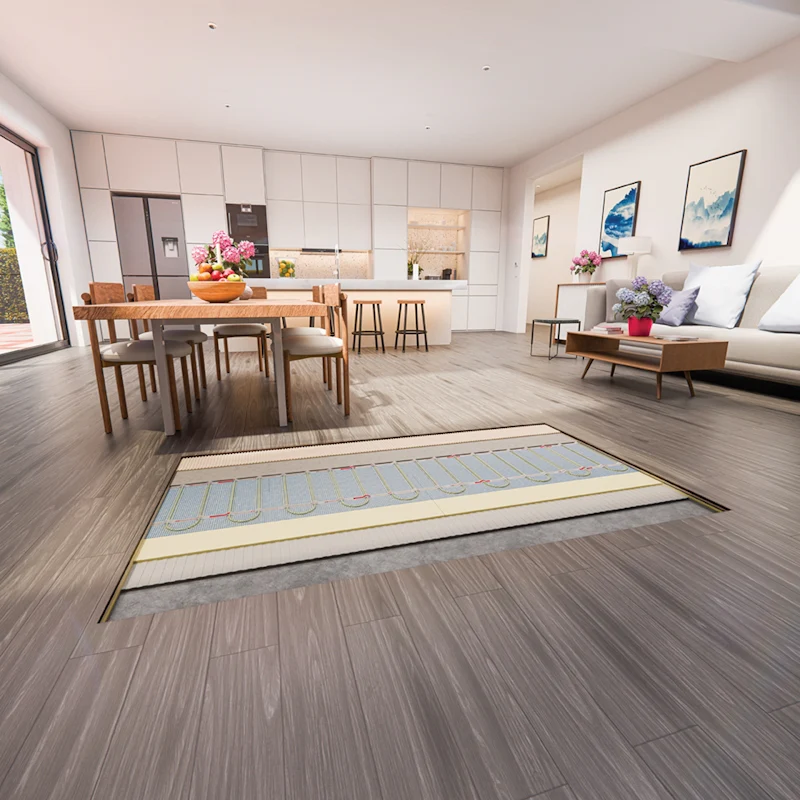

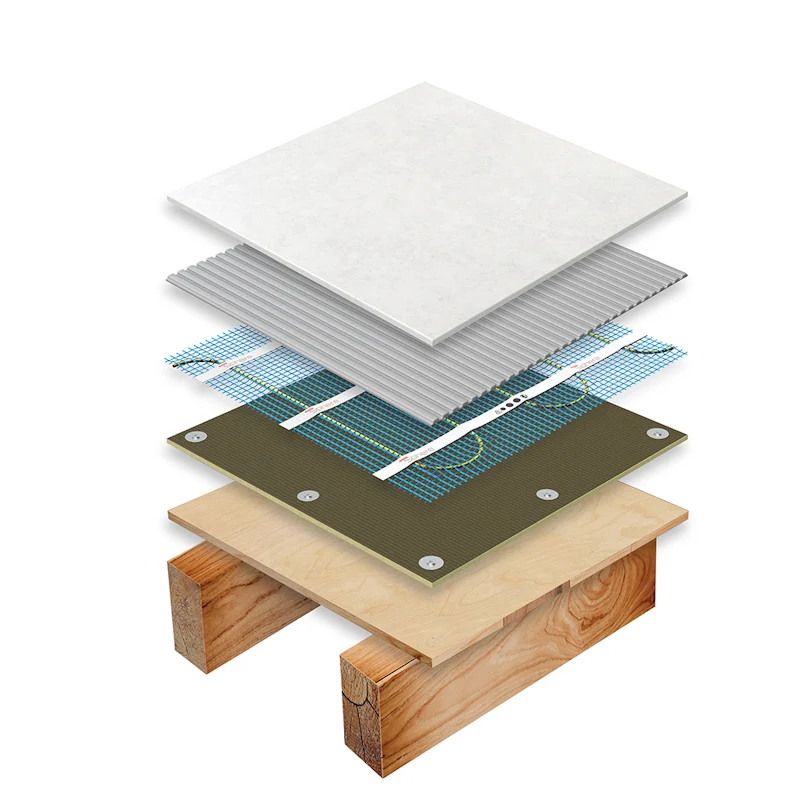

Tile and Stone — or Other Finishes with Overlay

Primarily for tile and stone floors tiled directly over. With self-levelling compound, also suitable under wood and vinyl. Can be installed on tiled walls.

Tile / StoneWood/vinyl with overlayWall tiles possible

IP68 — Safe in Wet Rooms and Bathrooms

IP68 rated — completely impervious to moisture, safe in wet rooms, shower areas and bathrooms when installed with appropriate accessories.

IP68Wet room safe

Lifetime Warranty — Stays with the Property

Backed by a lifetime warranty when registered online. Uniquely, the warranty transfers with the property on sale — the new owners remain covered.

Lifetime warrantyProperty warranty

Technical Specifications

Technical Data
Voltage	230V / 50Hz
Output	200 W/m²
Total Thickness	3.5mm
Area Range	1.5 – 12.0 m²
Mesh Material	Self-adhesive fibreglass
Cable Insulation	FEP and HR-PVC
Protection Rating	IP68
Recommended Max Floor Temperature	27°C (limited by thermostat controls)
Warranty	Lifetime (online registration required)
Country of Origin	United Kingdom

ℹ Installation: All electrical connections must be made by a qualified electrician in accordance with BS 7671. Register your product with ThermoSphere online to activate your lifetime warranty.

Frequently Asked Questions

What output do I need for my room?

200W/m² is for rooms with high heat loss — conservatories, large extensions with floor-to-ceiling glazing, poorly insulated properties. For standard insulated domestic rooms, 150W/m² is usually sufficient.

Can I install this in a wet room?

Yes — IP68 makes it safe in wet rooms and shower areas with appropriate waterproofing accessories.

Can I cut the heating cable?

Never cut the cable. Cut only the mesh backing between cable runs to change direction.

What floor finishes are compatible?

Primarily tile and stone tiled directly over. With self-levelling compound overlay, also suitable under wood and vinyl.

How much area do I need to heat?

Aim to cover at least 85% of the walkable floor area for effective even heating. Exclude fixed furniture footprints (baths, toilets, kitchen units).
