-65%SolaX X3 Ultra 20kW Three Phase Hybrid Inverter—
$4,400.33
$1,540.12The Story

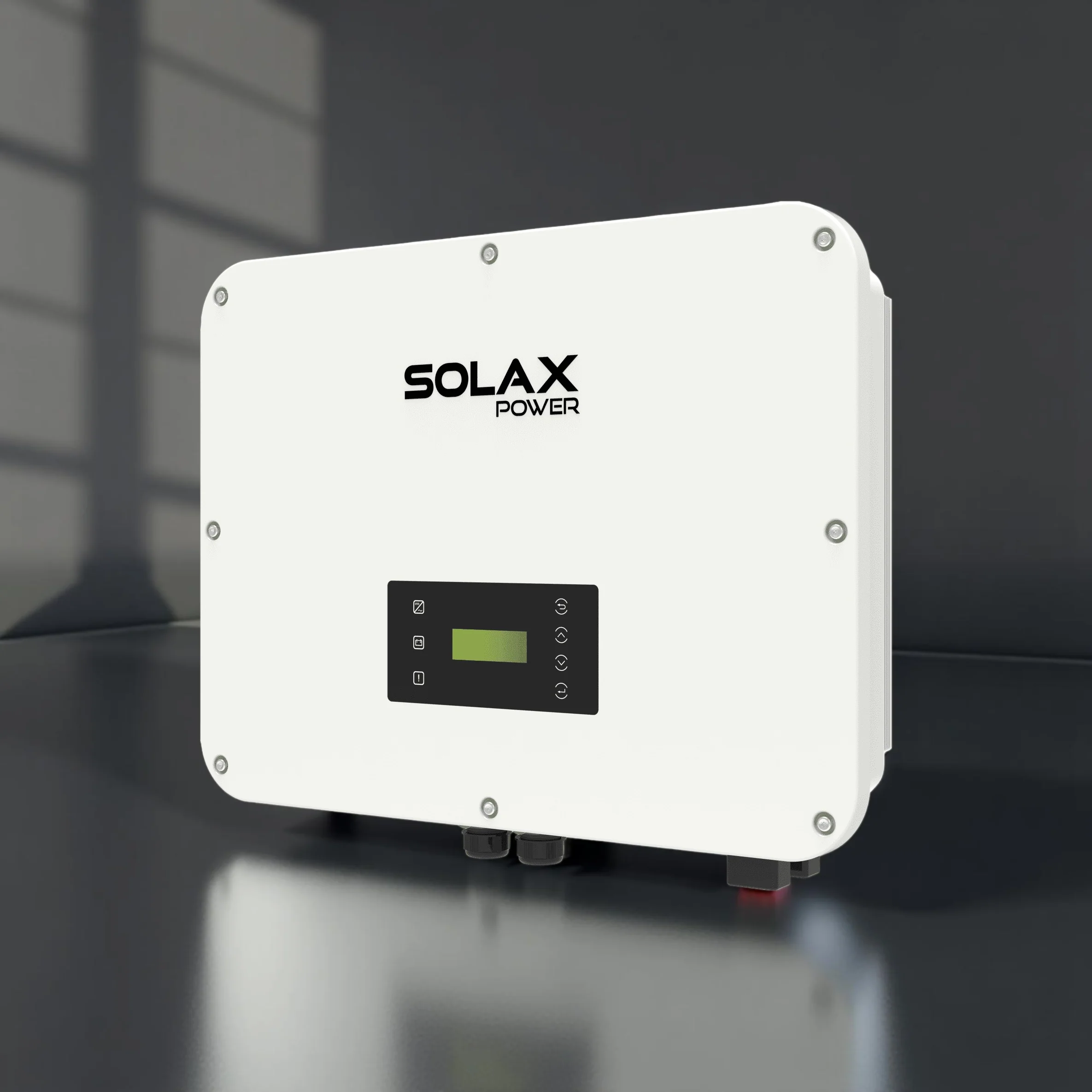

SolaX X3 Ultra 20kW Three Phase Hybrid Inverter
The SolaX X3 Ultra 20kW Hybrid Inverter is a high-performance three-phase hybrid solution for commercial, industrial, and large residential solar-plus-storage projects. It combines advanced PV conversion, high-voltage battery storage, and intelligent energy management for maximum efficiency, reliability, and flexibility.
Key Features
- Hybrid inverter: integrates solar PV and battery storage
- Max. recommended PV array: 40kWp (supports 200% PV oversizing)
- Max. PV input voltage: 1000V, nominal DC voltage: 600V
- Up to 36A input per MPPT, 2 MPPTs (2 × 2 strings)
- Max. AC output: 20,000W (nominal), 22,000VA (max.)
- 100% unbalanced three-phase output, up to 5kW per phase
- Max. battery voltage: 800V (lithium-ion), range: 180–800V
- Max. battery charge/discharge current: 60A (2 × 30A)
- EPS backup output: 15,000VA (continuous), 2× rated power for 10s
- UPS-level switchover time: <10ms
- Supports microgrid and generator operation, VPP-ready
- Parallel operation: up to 10 units (on-grid/off-grid)
- Type II SPD on both AC & DC sides, IP66 protection
- Smart load management (EV charger, heat pump, etc.)
- Built-in WiFi, Modbus, RS485, digital I/O
- Operating temperature: -35°C to +60°C (derating above +45°C)
- Dimensions: 696 × 526 × 240 mm; Weight: 47 kg
- Fanless smart cooling, transformerless topology
- Certification: G99, VDE4105, EN50549, CEI 0-21, IEC62109, AS4777, and more
- Warranty: 5 years standard
SolaX X3 Hybrid Inverter Technical Specifications
- Max. DC input power: 40,000W
- MPPT voltage range: 160–950V
- Start output voltage: 200V
- Nominal AC voltage: 3P4W, 400/230V
- Nominal AC current: 21.8A; Max. AC current: 24A
- Displacement power factor: 1 (adjustable 0.8 leading/lagging)
- Total harmonic distortion: <3% (THDi/THDv)
- Internal consumption (night): <5W
- Protection: Anti-islanding, DC reverse polarity, insulation/residual current monitoring, AC overcurrent/overvoltage, overheat, battery reverse charging, surge protection, AFCI (optional)
- Altitude: up to 3000m
- Relative humidity: 0–100%
- Storage temperature: -40°C to +70°C
SolaX X3 Hybrid Inverter Applications
- Commercial and industrial solar-plus-storage systems
- Large residential projects with high energy demand
- Microgrid and off-grid installations
- VPP and grid services participation
