Glow-Worm Vertical Flue Terminal - 60/100—
$198.13
The Story

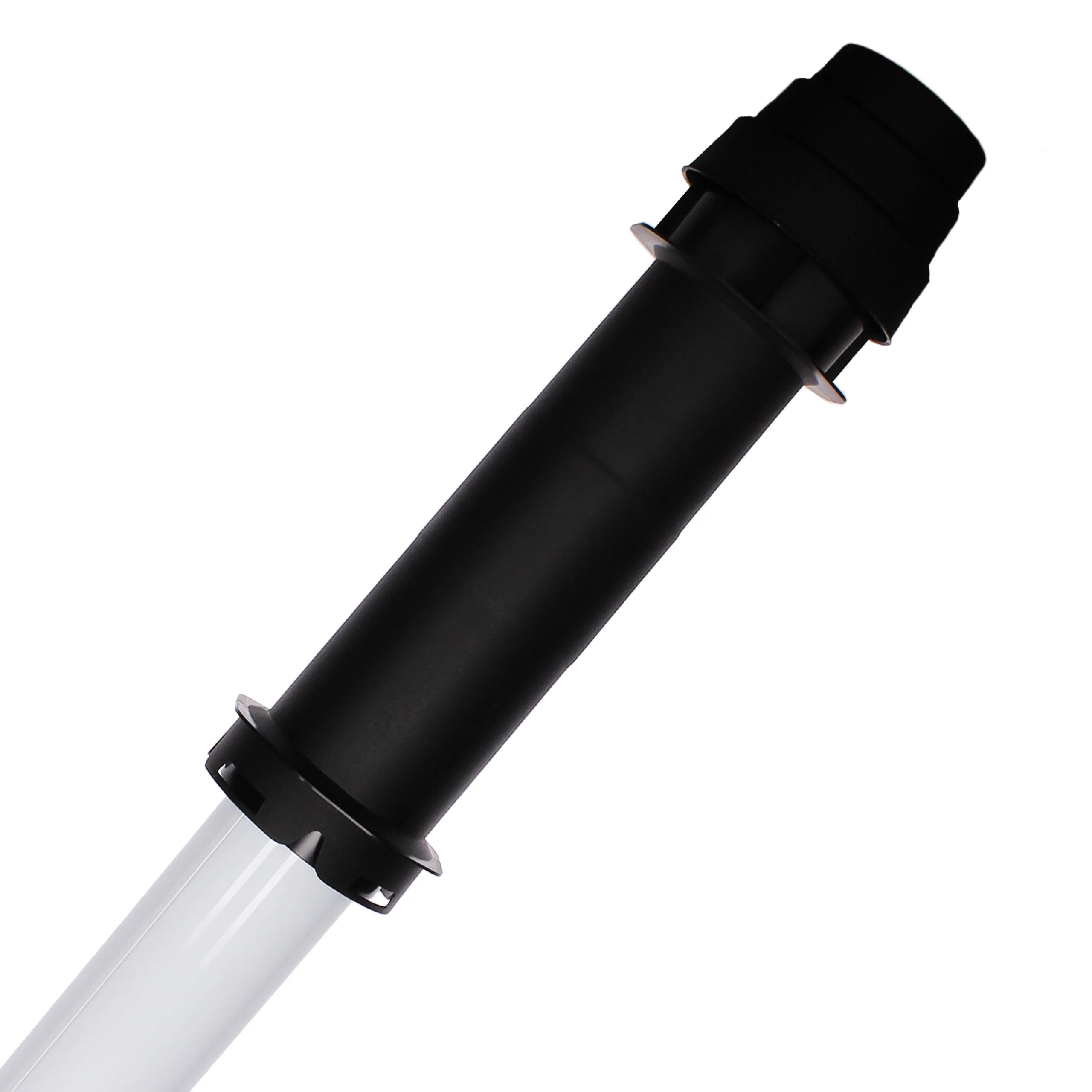

The Glow-worm Vertical Flue Terminal (0020230604) is a genuine 60/100mm roof duct for vertical flue termination on Glow-worm's current condensing boiler ranges. Supplied in black with a collar, fixing bracket and cover plate, it provides a complete, weathertight roof penetration for installations where a wall termination isn't practical — typically flat conversions, loft rooms, or properties where planning or siting rules rule out a horizontal flue run.
60/100mm
Flue Diameter
Vertical
Termination Type
Black
Colour
PP
Material
926mm
Length (upper section)
Roof-Sealed
Weather Protection
Gas Safe Installation Requirement
Vertical flue terminations must be installed by a Gas Safe registered engineer and must comply with the clearances and roof penetration requirements set out in the boiler's flue installation manual and current Building Regulations.
Adaptor Required Separately
This terminal transitions the flue to a vertical roof duct, but a separate vertical flue adaptor matched to your specific boiler range is required to connect it to the boiler's horizontal flue spigot. Confirm the correct adaptor part number for your boiler model before ordering — the Compact range, for example, uses adaptor 10031029.
Why This Component
Complete Roof Duct Assembly
Supplied with the fixing bracket, 48mm air-pipe collar and cover plate needed to complete a compliant vertical roof penetration, reducing the number of separate parts an installer needs to source.
Telescopic, Shortenable Design

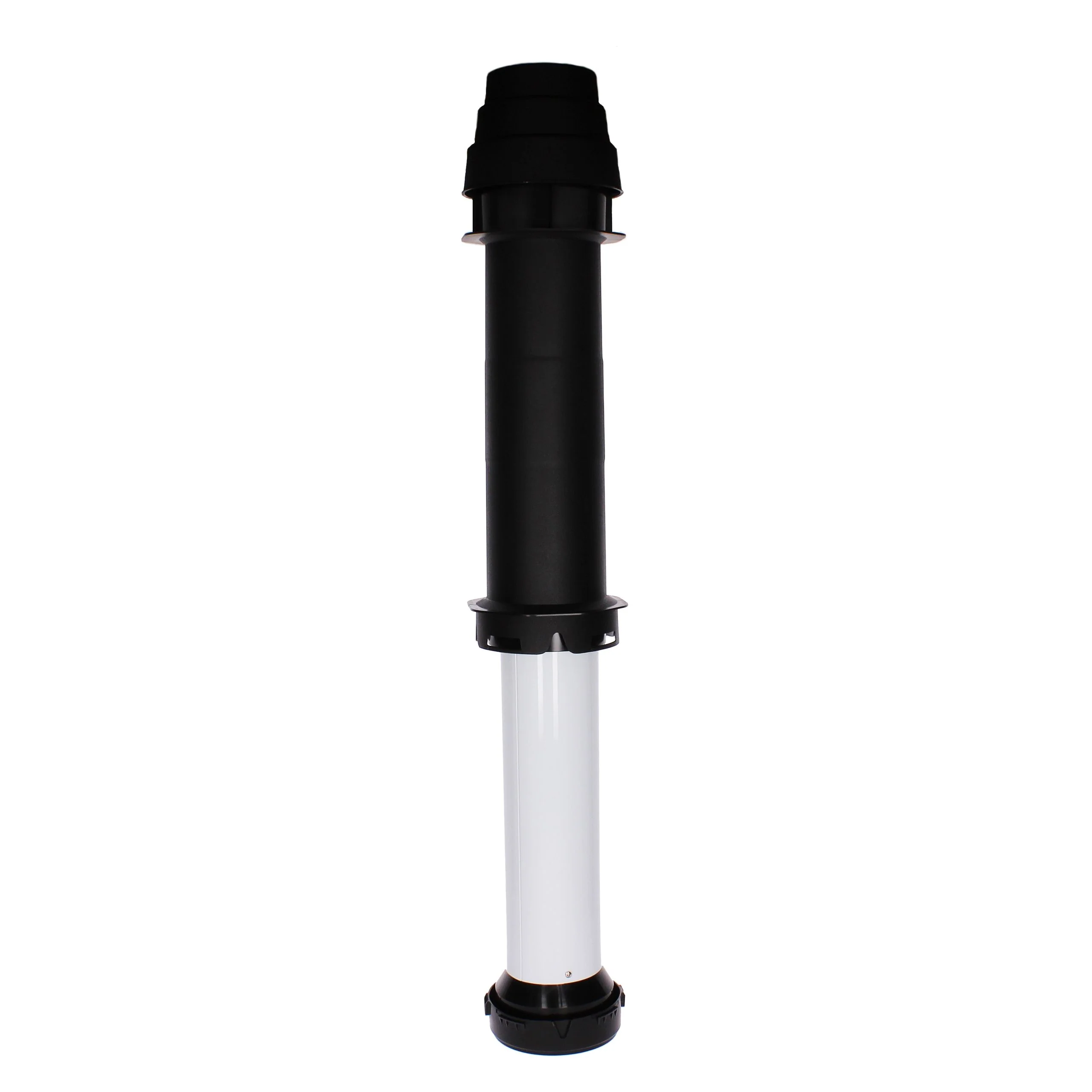

The lower pipe pushes into the upper pipe as supplied, and the roof duct can be shortened under the roofline to suit different loft heights while keeping the fixing bracket secure.
Anti-Corrosive Construction
Built from durable polypropylene, the terminal resists degradation from acidic condensate over the working life of the boiler, matching the material used throughout the wider Glow-worm flue range.
Compatible Across the Current Range
Fits Glow-worm's ENERGY, ULTIMATE, and EASICOM condensing boiler families using the 60/100mm flue system, subject to fitting the correct boiler-specific adaptor.
Technical Specification
| General | |
| Article number | 0020230604 |
| Product type | Vertical roof duct / terminal |
| Flue diameter | 60/100mm concentric |
| Colour | Black |
| Material | Polypropylene (PP) |
| Included Items | |
| Vertical roof duct (upper and lower sections) | Included |
| Fixing bracket | Included |
| 48mm air-pipe collar | Included |
| Cover plate | Included |
| Compatibility | |
| Compatible boiler ranges | Glow-worm ENERGY, ULTIMATE, EASICOM and Compact (60/100mm system) |
| Required additional part | Boiler-specific vertical flue adaptor (sold separately) |
