Glow-worm Compact 24C LPG Combi Boiler, Vertical Flue, Adaptor and System Filter—
$1,447.14
The Story
The Glow-worm Compact 24C LPG is a wall-hung, room-sealed condensing combi boiler rated at 24kW, factory-configured for LPG and built in the UK at Glow-worm's Belper factory. This listing bundles the boiler with the Glow-worm Vertical Flue Kit (20230604) together with the required Vertical Flue Adaptor (10031029), for roof termination installations, and the Glow-worm Power System Filter (10035820) to protect the heat exchanger from circulating debris. One of the smallest and lightest boilers in the Glow-worm range at just 626 x 400 x 270mm, the Compact 24C suits tight airing cupboard or kitchen cupboard installations without compromising on output.
24kW
Combi Output
92%
ErP Efficiency
9.0 – 20.0 kW
CH Output Range
NOx 6
NOx Class
5 yrs
Parts & Labour Guarantee
25.6 kg
Net Weight
Gas Safe Registration & LPG Installation Requirements
This is an LPG-specific boiler (gas category II2H3P) and must only be installed, commissioned and serviced by a Gas Safe registered engineer holding the relevant LPG qualification. It must not be connected to a natural gas supply. The flue must be positioned in accordance with the clearances in the manufacturer's installation instructions, and a Benchmark commissioning checklist must be completed and left with the end user.

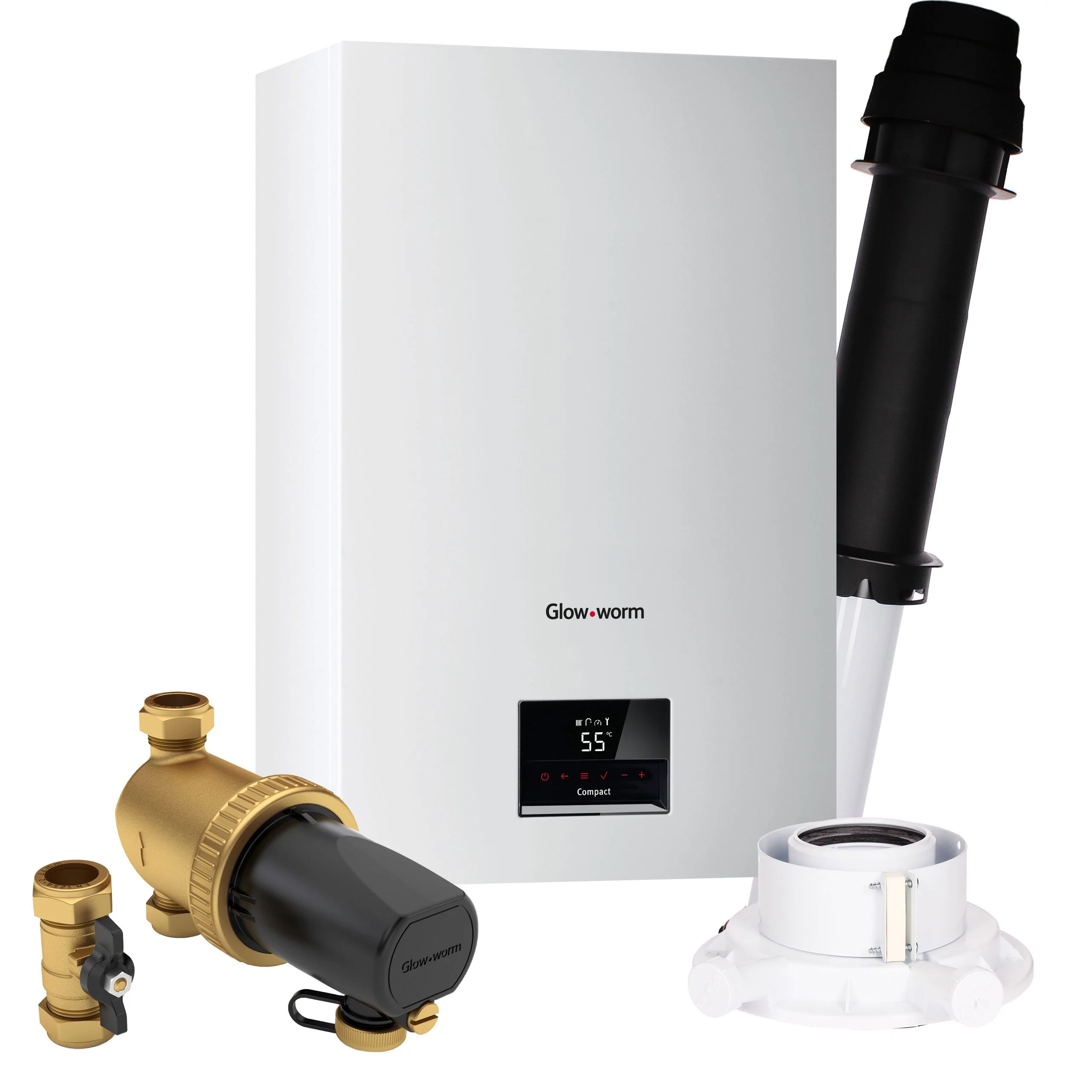

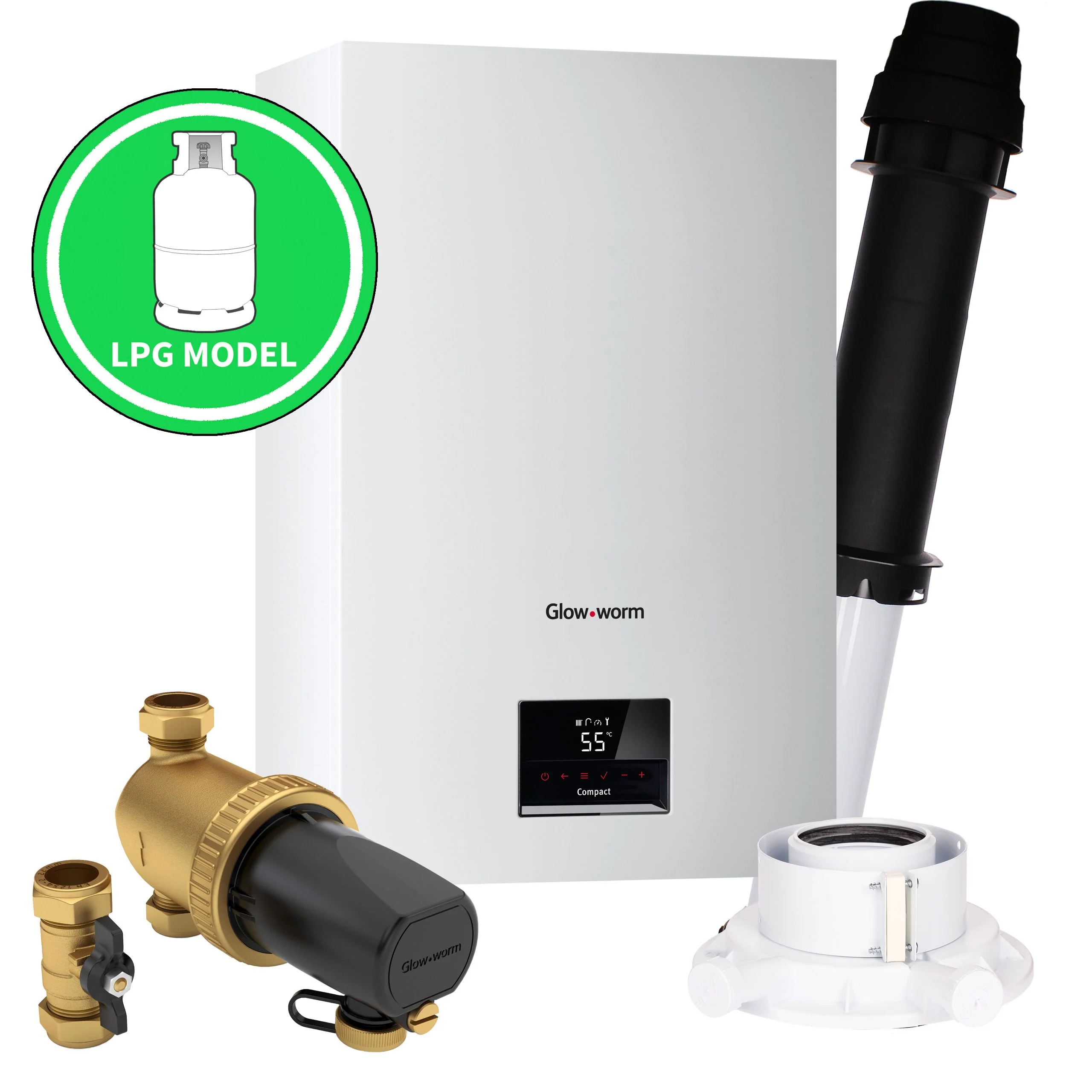

Bundle Contents & Compatibility

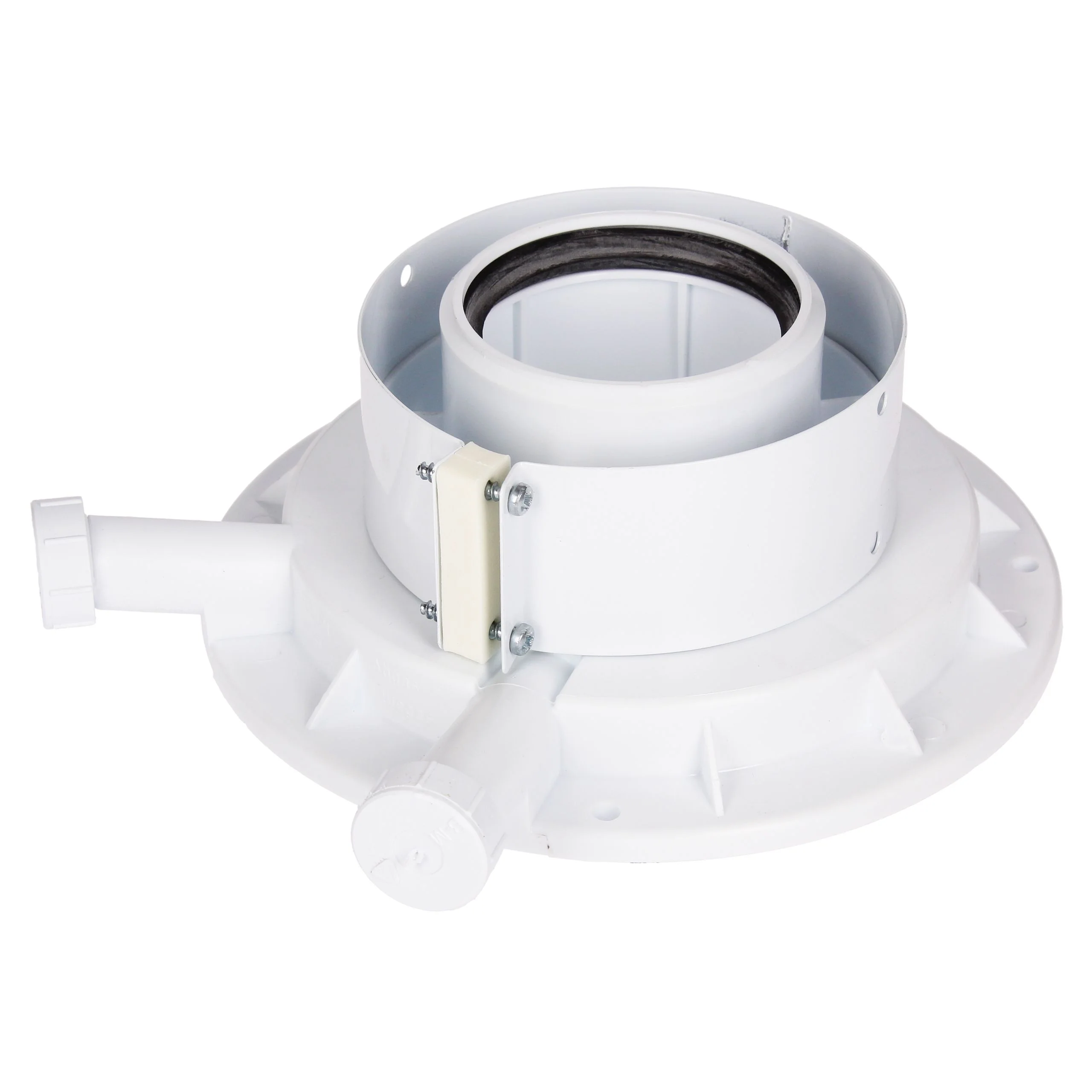

This listing supplies three separate boxed items designed to be installed together: the Compact 24C LPG boiler (article 0010040107), the Glow-worm Vertical Flue Kit (0020230604) with Vertical Flue Adaptor (0010031029), and the Power System Filter (10035820). The vertical flue kit requires the separate adaptor (10031029) to terminate correctly through a pitched or flat roof — both are included in this bundle.
Why This Bundle
Purpose-Built for LPG
Factory-configured for liquefied petroleum gas (G31) rather than field-converted, making this the correct specification for off-gas-grid properties and static caravan installations running on LPG.
Compact, Lightweight Design
At 25.6 kg net and 626 x 400 x 270mm, the Compact 24C is one of the smallest and lightest boilers Glow-worm produces, easing installation in restricted spaces.
High-Efficiency Modulating Pump
A modulating pump adapts its output to actual heating and hot water demand rather than running at a fixed speed, lowering electricity consumption and running costs.
Quiet Heat Exchanger
Built around a heat exchanger engineered for low operating noise, keeping the boiler unobtrusive in kitchen or hallway cupboard installations close to living space.
UK-Built Quality
Manufactured at Glow-worm's award-winning factory in Belper, Derbyshire, alongside the wider Vaillant Group boiler range with which it shares core componentry.

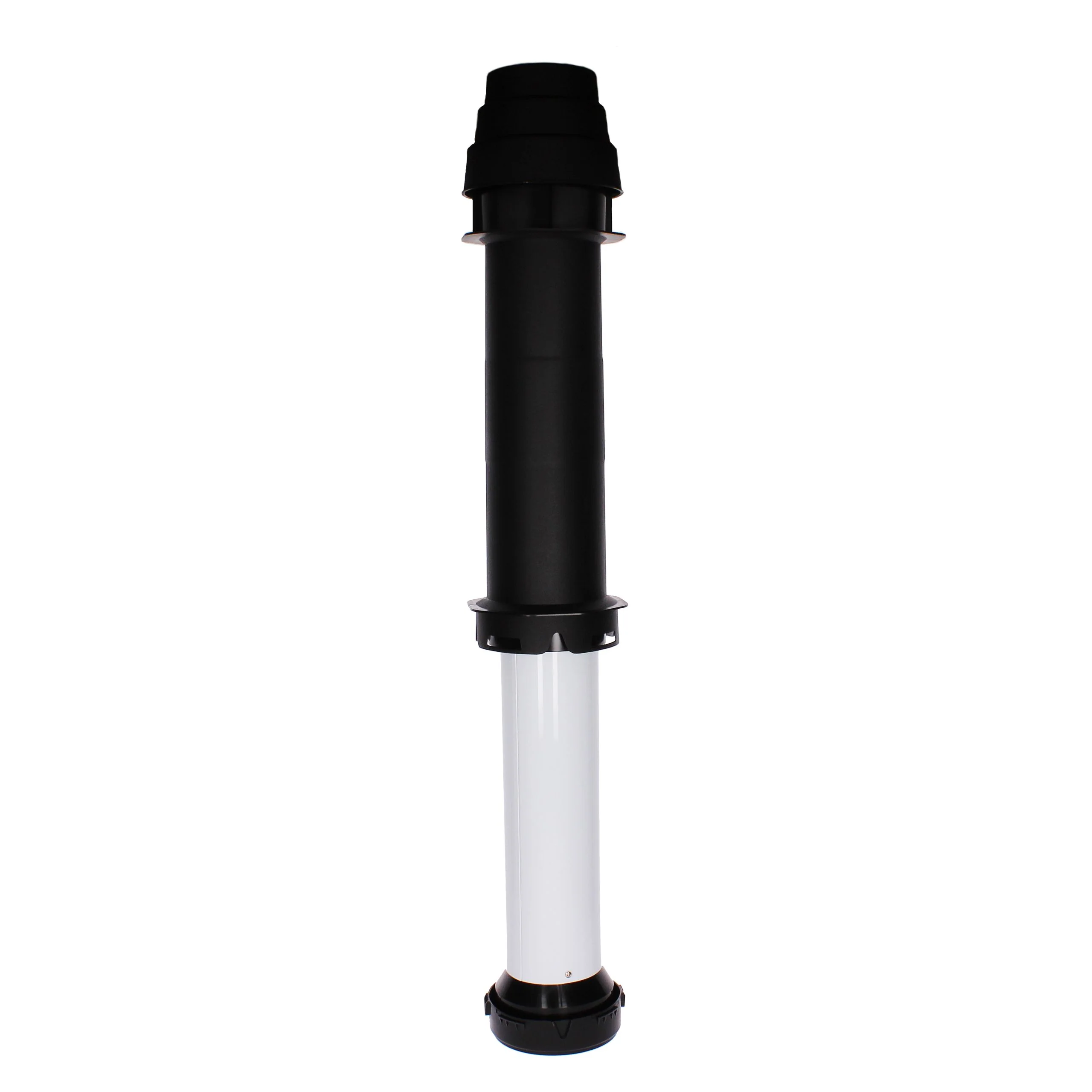

Vertical Flue, Adaptor Included
This bundle supplies the correct Glow-worm-approved flue components for a roof termination, removing the guesswork of matching third-party flue accessories to the boiler.
Technical Specification
| General | |
| Boiler article number | 0010040107 |
| Flue kit article number(s) | 20230604 + 10031029 |
| System filter article number | 10035820 |
| Boiler type | Wall-hung, room-sealed, fan-assisted condensing combi |
| Gas category | II2H3P (LPG, G31) — factory set |
| Dimensions (H x W x D) | 626 x 400 x 270 mm |
| Guarantee | 5 years parts and labour |
| Heating Performance | |
| Nominal heat output range (50/30°C, condensing) | 9.0 – 20.0 kW |
| Nominal heat output range (75/55°C) | 8.1 – 18.3 kW |
| Maximum flow temperature | 75°C |
| Flow temperature adjustment range | 30 – 75°C |
| Maximum operating pressure (heating) | 3.0 bar |
| Domestic Hot Water | |
| Specific flow rate D (ΔT = 30K) | 11.5 l/min |
| Specific flow rate D (ΔT = 35K) | 9.9 l/min |
| Minimum water flow | 1.7 l/min |
| DHW output temperature range | 35 – 55°C |
| Recommended supply pressure | 3.0 bar |
| Performance & Emissions | |
| ErP efficiency | 92% |
| NOx class | 6 |
| Net weight | 25.6 kg |
| IP rating | IPX5 |
| Flue | |
| Permitted installation types | C13, C33, C43, C53 |
| Max. horizontal flue length (60/100mm, incl. 1 elbow) | 9 m |
| Max. vertical flue length (60/100mm, incl. 1 elbow) | 10 m |
