Drayton Wiser 3-Channel 2nd Generation HubR CCTFR6313G2D | Dual Heating Zone + Hot Water | Conventional Boiler | Smart Heating Control
HomeStore

Drayton Wiser 3-Channel 2nd Generation HubR CCTFR6313G2D | Dual Heating Zone + Hot Water | Conventional Boiler | Smart Heating Control

Drayton Wiser 3-Channel 2nd Generation HubR CCTFR6313G2D | Dual Heating Zone + Hot Water | Conventional Boiler | Smart Heating Control

$74.50

Original: $212.85

-65%
Drayton Wiser 3-Channel 2nd Generation HubR CCTFR6313G2D | Dual Heating Zone + Hot Water | Conventional Boiler | Smart Heating Control—

$212.85

$74.50

The Story

CCTFR6313G2D3-Channel Hub2nd GenerationDual Heating ZonesConventional BoilerBoiler Plus Compliant

Drayton Wiser 3-Channel 2nd Generation HubR (CCTFR6313G2D) — Smart heating control of 2 independent heating zones + hot water  |  Ideal for large properties with dual heating circuits  |  OpenTherm & relay switching  |  ZigBee mesh + 2.4GHz Wi-Fi  |  Boiler Plus compliant

✅ For Large Properties with Dual Heating Circuits + Hot Water CylinderThe 3-Channel Hub controls 2 × Heating + 1 × Hot Water. Designed for large homes or properties with separate heating zones (e.g. ground floor / first floor, or main house / extension) and a conventional boiler with a hot water cylinder. For a single heating zone plus hot water, see the 2-Channel Hub (CCTFR6312G2D).

The Drayton Wiser 3-Channel 2nd Generation HubR is Drayton's most capable Hub, designed for large properties with dual heating circuits and a conventional or system boiler. It independently controls two heating zones — each with their own schedule, temperature setpoints, and connected radiator or room thermostats — plus a separate hot water channel, all managed from the Wiser Home app.

Typical installations include large family homes where upstairs and downstairs heating circuits are controlled separately, properties with an extension on its own heating loop, or developments where a plant room serves two distinct zones. Each zone can be set to completely different programmes, allowing, for example, the bedroom zone to come on earlier in the morning while the living zone heats later in the day.

Pair with the full range of Wiser 2nd Generation Smart Home devices for a comprehensive smart home ecosystem — heating, hot water, security sensors and home automation all managed through a single interface.

Key Features

2 Independent Heating ZonesControls two completely separate heating circuits with independent schedules, temperature targets and zone-specific TRV / room thermostat groups — no compromise between zones.
Independent Hot Water ControlThird channel provides separate scheduling of domestic hot water — heat the cylinder at different times to heating, reducing energy use and running costs.
OpenTherm Boiler InterfaceModulating OpenTherm connection for compatible boilers, allowing precise output control that reduces on/off cycling and improves thermal efficiency.
Relay & Heat Pump SupportAlso supports standard relay switching and On/Off heat pump control — compatible with a wide range of conventional boiler and heat pump installations.
Room-by-Room ZoningConnect Wiser Radiator and Room Thermostats to each zone for granular room-by-room control, independent of zone-level schedules.
Smart Home EcosystemFull compatibility with Wiser 2nd Gen Smart Home devices — sensors, motion detectors, window/door sensors, water leak sensors and smoke alarms.
ZigBee Mesh NetworkDedicated ZigBee 2.4GHz network for all Wiser devices — reliable, low-latency communication independent of Wi-Fi congestion.
Eco, Comfort & Away ModesSystem-wide modes reduce energy consumption when the property is empty or during milder weather — applies across all three channels simultaneously.

Technical Specifications

Specification Detail
Part Number CCTFR6313G2D
Brand Drayton by Schneider Electric
Range Wiser 2nd Generation
Channels 3 × (2 × Heating + 1 × Hot Water) — for large properties with dual heating circuits
Boiler Interface OpenTherm (modulating) + Relay switching
Heat Pump Compatible Yes — On/Off heat demand signal
Power Supply 230V a.c. ±10%, 50Hz (fixed wiring)
Switch Rating 2(1)A 230V a.c. per switch
Wireless (Devices) ZigBee 2.4 GHz, IEEE 802.15.4
Wireless (Internet) Wi-Fi 2.4 GHz, IEEE 802.11 b/g/n
Setpoint Range 5°C to 30°C
Temperature Resolution 0.5°C
Operating Temperature 0°C to 45°C
IP Rating IP30
Dimensions (H × W × D) 94 × 150.8 × 30.3mm
Mounting Wall plate (fixed wiring, BS7671)
Voice Assistants Amazon Alexa, Google Assistant, IFTTT
App Wiser Home app — iOS & Android
Compliance Boiler Plus (Part L), RED 2014/53/EU, RoHS

What's Included

In the Box

1 × Wiser 3-Channel 2nd Generation HubR (CCTFR6313G2D) with wall plate. Radiator thermostats, room thermostat and Wiser Smart Home sensors sold separately.

Frequently Asked Questions

Do I need the 3-Channel Hub?The 3-Channel Hub is needed when you have two separate heating circuits (e.g. upstairs / downstairs, extension / main house) and a hot water cylinder. If you have a single heating zone and hot water cylinder, the 2-Channel Hub is sufficient. For combi boilers with a single heating zone, choose the 1-Channel Hub.
Can I set different heating schedules for each zone?Yes. Each of the two heating channels has a completely independent daily and weekly schedule — different wake-up temperatures, boost times and setbacks for each zone.
Is professional installation required?Yes. The Hub requires fixed wiring connections to the boiler and zone valves, and must comply with IET regulations (BS7671). Installation by a qualified heating engineer is required.
Can I add Smart Home sensors to the 3-Channel Hub?Yes. All Wiser 2nd Generation Smart Home sensors — including motion, window/door, water leak and smoke alarm — are compatible regardless of which Hub variant is installed.
Does it support OpenTherm on both heating zones?OpenTherm is a single communication bus between the Hub and the boiler — the Hub signals the boiler's output level, which applies to both heating zones. Zone-specific control is achieved through motorised zone valves.

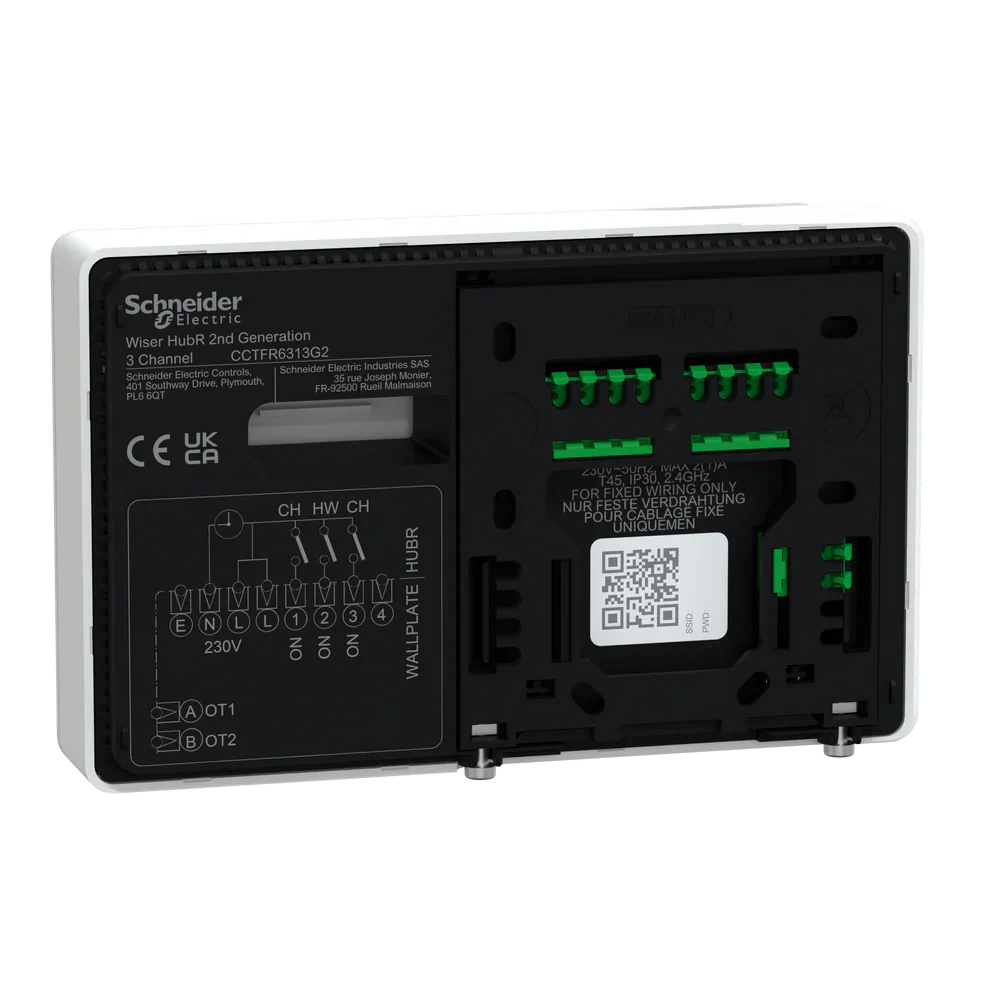

Drayton Wiser 3-Channel 2nd Generation HubR CCTFR6313G2D | Dual Heating Zone + Hot Water | Conventional Boiler | Smart Heating Control - Image 2

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Drayton Wiser 3-Channel 2nd Generation HubR CCTFR6313G2D | Dual Heating Zone + Hot Water | Conventional Boiler | Smart Heating Control - Image 3

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Drayton Wiser 3-Channel 2nd Generation HubR CCTFR6313G2D | Dual Heating Zone + Hot Water | Conventional Boiler | Smart Heating Control - Image 4

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Description

CCTFR6313G2D3-Channel Hub2nd GenerationDual Heating ZonesConventional BoilerBoiler Plus Compliant

Drayton Wiser 3-Channel 2nd Generation HubR (CCTFR6313G2D) — Smart heating control of 2 independent heating zones + hot water  |  Ideal for large properties with dual heating circuits  |  OpenTherm & relay switching  |  ZigBee mesh + 2.4GHz Wi-Fi  |  Boiler Plus compliant

✅ For Large Properties with Dual Heating Circuits + Hot Water CylinderThe 3-Channel Hub controls 2 × Heating + 1 × Hot Water. Designed for large homes or properties with separate heating zones (e.g. ground floor / first floor, or main house / extension) and a conventional boiler with a hot water cylinder. For a single heating zone plus hot water, see the 2-Channel Hub (CCTFR6312G2D).

The Drayton Wiser 3-Channel 2nd Generation HubR is Drayton's most capable Hub, designed for large properties with dual heating circuits and a conventional or system boiler. It independently controls two heating zones — each with their own schedule, temperature setpoints, and connected radiator or room thermostats — plus a separate hot water channel, all managed from the Wiser Home app.

Typical installations include large family homes where upstairs and downstairs heating circuits are controlled separately, properties with an extension on its own heating loop, or developments where a plant room serves two distinct zones. Each zone can be set to completely different programmes, allowing, for example, the bedroom zone to come on earlier in the morning while the living zone heats later in the day.

Pair with the full range of Wiser 2nd Generation Smart Home devices for a comprehensive smart home ecosystem — heating, hot water, security sensors and home automation all managed through a single interface.

Key Features

2 Independent Heating ZonesControls two completely separate heating circuits with independent schedules, temperature targets and zone-specific TRV / room thermostat groups — no compromise between zones.
Independent Hot Water ControlThird channel provides separate scheduling of domestic hot water — heat the cylinder at different times to heating, reducing energy use and running costs.
OpenTherm Boiler InterfaceModulating OpenTherm connection for compatible boilers, allowing precise output control that reduces on/off cycling and improves thermal efficiency.
Relay & Heat Pump SupportAlso supports standard relay switching and On/Off heat pump control — compatible with a wide range of conventional boiler and heat pump installations.
Room-by-Room ZoningConnect Wiser Radiator and Room Thermostats to each zone for granular room-by-room control, independent of zone-level schedules.
Smart Home EcosystemFull compatibility with Wiser 2nd Gen Smart Home devices — sensors, motion detectors, window/door sensors, water leak sensors and smoke alarms.
ZigBee Mesh NetworkDedicated ZigBee 2.4GHz network for all Wiser devices — reliable, low-latency communication independent of Wi-Fi congestion.
Eco, Comfort & Away ModesSystem-wide modes reduce energy consumption when the property is empty or during milder weather — applies across all three channels simultaneously.

Technical Specifications

Specification Detail
Part Number CCTFR6313G2D
Brand Drayton by Schneider Electric
Range Wiser 2nd Generation
Channels 3 × (2 × Heating + 1 × Hot Water) — for large properties with dual heating circuits
Boiler Interface OpenTherm (modulating) + Relay switching
Heat Pump Compatible Yes — On/Off heat demand signal
Power Supply 230V a.c. ±10%, 50Hz (fixed wiring)
Switch Rating 2(1)A 230V a.c. per switch
Wireless (Devices) ZigBee 2.4 GHz, IEEE 802.15.4
Wireless (Internet) Wi-Fi 2.4 GHz, IEEE 802.11 b/g/n
Setpoint Range 5°C to 30°C
Temperature Resolution 0.5°C
Operating Temperature 0°C to 45°C
IP Rating IP30
Dimensions (H × W × D) 94 × 150.8 × 30.3mm
Mounting Wall plate (fixed wiring, BS7671)
Voice Assistants Amazon Alexa, Google Assistant, IFTTT
App Wiser Home app — iOS & Android
Compliance Boiler Plus (Part L), RED 2014/53/EU, RoHS

What's Included

In the Box

1 × Wiser 3-Channel 2nd Generation HubR (CCTFR6313G2D) with wall plate. Radiator thermostats, room thermostat and Wiser Smart Home sensors sold separately.

Frequently Asked Questions

Do I need the 3-Channel Hub?The 3-Channel Hub is needed when you have two separate heating circuits (e.g. upstairs / downstairs, extension / main house) and a hot water cylinder. If you have a single heating zone and hot water cylinder, the 2-Channel Hub is sufficient. For combi boilers with a single heating zone, choose the 1-Channel Hub.
Can I set different heating schedules for each zone?Yes. Each of the two heating channels has a completely independent daily and weekly schedule — different wake-up temperatures, boost times and setbacks for each zone.
Is professional installation required?Yes. The Hub requires fixed wiring connections to the boiler and zone valves, and must comply with IET regulations (BS7671). Installation by a qualified heating engineer is required.
Can I add Smart Home sensors to the 3-Channel Hub?Yes. All Wiser 2nd Generation Smart Home sensors — including motion, window/door, water leak and smoke alarm — are compatible regardless of which Hub variant is installed.
Does it support OpenTherm on both heating zones?OpenTherm is a single communication bus between the Hub and the boiler — the Hub signals the boiler's output level, which applies to both heating zones. Zone-specific control is achieved through motorised zone valves.
