Drayton TRV4 Anthracite 15mm Angled TRV Chrome Lockshield Pack 07 05 210

Drayton TRV4 Anthracite 15mm Angled TRV Chrome Lockshield Pack 07 05 210

$76.31
Drayton TRV4 Anthracite 15mm Angled TRV Chrome Lockshield Pack 07 05 210—
$76.31

The Story

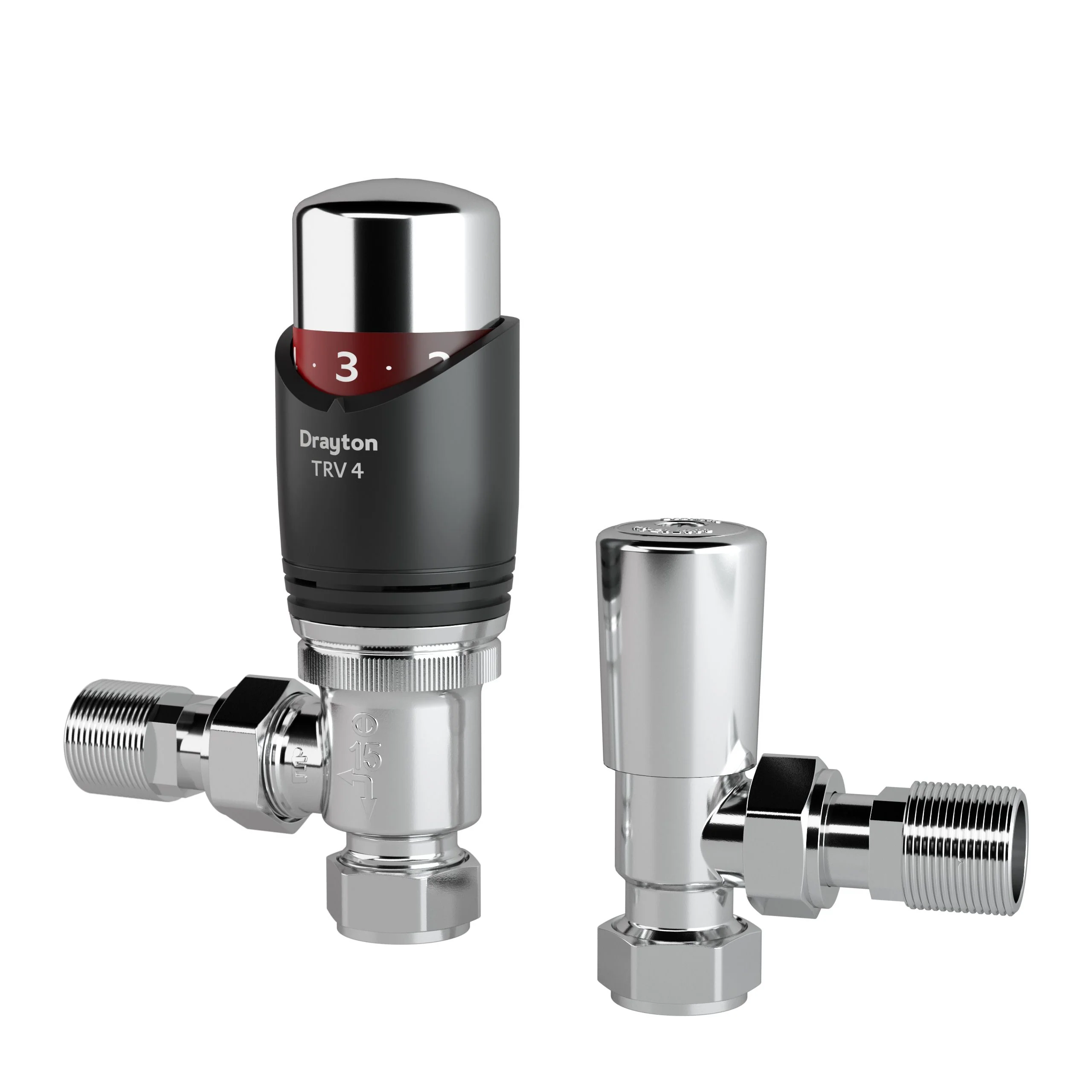

The Drayton TRV4 Anthracite 15mm Angled TRV & Chrome Lockshield Pack (MPN 07 05 210) delivers TRV4 performance in a contemporary anthracite finish, responding to the surge in popularity of flat-panel and column designer radiators in dark grey and anthracite tones. The pack pairs a 15mm angled TRV4 body with anthracite liquid-filled sensing head with a chrome lockshield. The valve body is identical in performance specification to the TRV4 Classic — featuring reverse flow, double gland seal, and pre-setting balancing — though the Anthracite variant does not carry the TELL Class I rating.

Anthracite
Contemporary Finish
Complete Pack
TRV + Lockshield
15mm
Angled
Reverse Flow
Body Feature
EN215
Approved
Energy Rating Note
The TELL Class I energy efficiency certification applies to TRV4 Classic and White variants only. The TRV4 Anthracite uses the same valve internals and is approved to BS EN 215, but does not carry the Class I mark.
System Commissioning
Flush to BS7593 and dose with inhibitor. Fit a by-pass valve where differential pressure may exceed 0.2 bar across multiple TRVs.
Key Features
🎨
Anthracite Finish
Matches the growing range of anthracite and graphite panel and column radiators — a finish specification now standard on many new-build and renovation projects.
🌡
Liquid-Filled Sensor
The same 0.22 mm/°C liquid-filled sensing element as the TRV4 Classic — precise room temperature control with a frost protection setting below 8°C.
🔁
Reverse Flow
The 15mm angled body supports installation on flow or return, with the head in any orientation — no modifications or special body versions required.
📦
Complete Valve Pack
Anthracite TRV head and chrome lockshield in one pack — everything needed for both ends of a single radiator connection, ordered and delivered together.
Technical Specifications
MPN 07 05 210
Also Available 07 05 211 — straight body with chrome lockshield
Pack Contents 1x 15mm angled TRV4 with anthracite head + 1x 15mm angled chrome lockshield
Head Finish Anthracite
Lockshield Finish Chrome
Connection 15mm compression; ½" BSP radiator thread
Body Material Chrome-plated brass
Setting Range Approx. 10°C – 30°C (1–5 + MAX)
Frost Protection Below 8°C (marked *)
Max Flow Temperature 110°C
Max Sensor Temperature 50°C
Max Test Pressure 20 bar
Max Static Pressure (compression) 10 bar at 65°C; 6 bar at 110°C
Sensor Sensitivity 0.22 mm/°C
Hysteresis 0.4 K
Standard BS EN 215
Manufacturer Drayton by Schneider Electric
Frequently Asked Questions
Does the TRV4 Anthracite carry the same Class I energy rating as the Classic?
No. The TELL Class I rating applies to TRV4 Classic and TRV4 White only. The Anthracite variant shares the same valve internals and is approved to BS EN 215, but is not separately assessed under the TELL Class I scheme.
Can I get a fully anthracite pair — TRV and lockshield both in anthracite?
The 07 05 210 pack pairs an anthracite TRV head with a chrome lockshield. If a fully matched anthracite lockshield is required, check Drayton's accessories range for current availability of anthracite lockshield options.
Is there a straight-body version of this pack?
Yes — MPN 07 05 211 provides the same anthracite head and chrome lockshield combination in a straight 15mm body configuration, for radiators where the pipework runs directly inline.
What radiator types suit this finish?
The anthracite finish is designed for anthracite, graphite, grey, or dark matt designer radiators — including horizontal and vertical flat-panel radiators, column radiators in dark finishes, and bathroom heated towel rails in anthracite.
How does the pre-setting facility work?
The pre-setting insert inside the TRV body restricts the maximum Kv (flow) when set using a Drayton balancing key before commissioning. This allows rough hydraulic balancing to be carried out at the valve itself. See Drayton datasheet D10-18 for the Kv table.

Description
